The
FDP3
range
of
interfaces
provide
monitoring
and
control
solutions
for
Toshiba
SMMS, SHRM and Digital Inverter air conditioning systems. This
supercedes the previous FDP2 range of products
FDP3 interfaces are the basic building block for creating low cost
air-conditioning control solutions. A single FDP3 interface can monitor
and control up to 8 indoor units as a single group, multiple FDP3s can
create more complex groupings.
Distributors that stock
FDP3 Interfaces are listed here.
|
|
 |
The FDP3-Modbus is a low cost Modbus based monitoring and control
interface for Toshiba VRF and Split ranges of air-conditioners. The
interface is compatible with all units that have a TCC-NET A,B remote
controller
network connection. No other network adaptor cards are required even
for split
A/C units.
Control Functions
- UNIT CONTROL. Control of Setpoint, Fanspeed,
Runmode, Louvre mode and on/off state through Modbus registers.
- REMOTE CONTROLLER Facility to individually
lock and unlock each remote controller button associated with unit
control.
- FAULT CODES. Readback of all indoor and
outdoor unit fault codes
- UNIT TEMPERATURES Indoor unit air and coil
temperatures is available
- RS485 NETWORK Multiple FDP3-Modbus interfaces
can be
|
|
Top of Page
| FDP3-BMS
Control
Interface |
 |

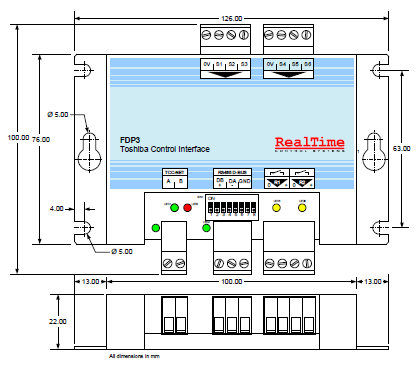

The
FDP3
is
a
low
cost monitoring and control interface for Toshiba VRF and
Split ranges of air-conditioners. The interface is compatible with all
units that have a TCC-NET A,B remote controller network connection. No
other network adaptor cards are required even for split A/C units.
Control Functions
- HARDWIRED CONTROL. Unit control can be
achieved through resistance inputs using potentiometer and volt-free
contact inputs.
- BMS INTEGRATION. Unit control can be achieved
through 1-10V voltage inputs integrated with BMS control outputs.
- REMOTE CONTROLLER Facility to individually
lock and remote controller buttons associated with unit control.
- RUN/FAULT Outputs. Readback of all indoor and
outdoor unit fault codes and unit run status.
- DUTY/STANDBY. Run/standby rotation with run on
fault and programmable rotation period.
- MODBUS. RS485 Modbus Control and Monitoring
Functions.
|
|
